Description

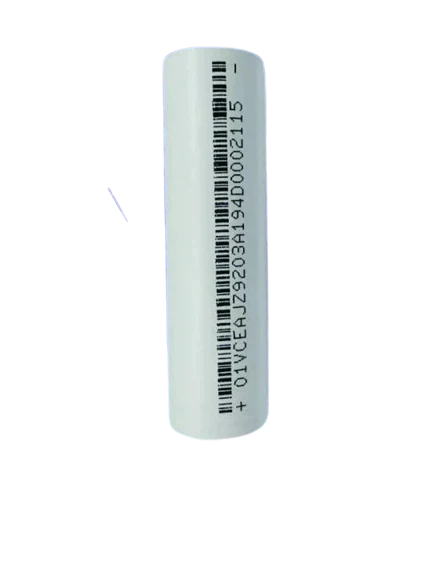

Deep Cycle Life High Capacity High-Density 3.6V ICR18650 Lithium Ion 3200mAH 3C Continuous Discharge Single Battery Cell
| Item of Efan battery | Condition/Note | Specification |
| 18650 3200mAh battery | Nominal Capacity | 3200mAh |
| Norminal Voltage | 3.6V | |
| Standard charge | constant current | 0.5C |
| constant voltage | 4.2V | |
| end current(cut off) | 100mA | |
| Standard discharge | constant current | 9.6A |
| end voltage(cut off) | 3.0V | |
| Maximum discharge Current | pulse current | 16A |
| 3.6V 18650 battery weight | approximate | 46g |
| Operating temperature | charge | -20-40 °C |
| discharge | -20-60 °C | |
| Storage temperature | 1 month | 0-45 °C |
| 6 months | 0-40 °C | |
| 1 year | 0-30°C | |
| dimensions (Diameter & Height) | D18.3±0.2mm | |
| H65.3±0.2mm | ||
